Part Number: POA-001-CN

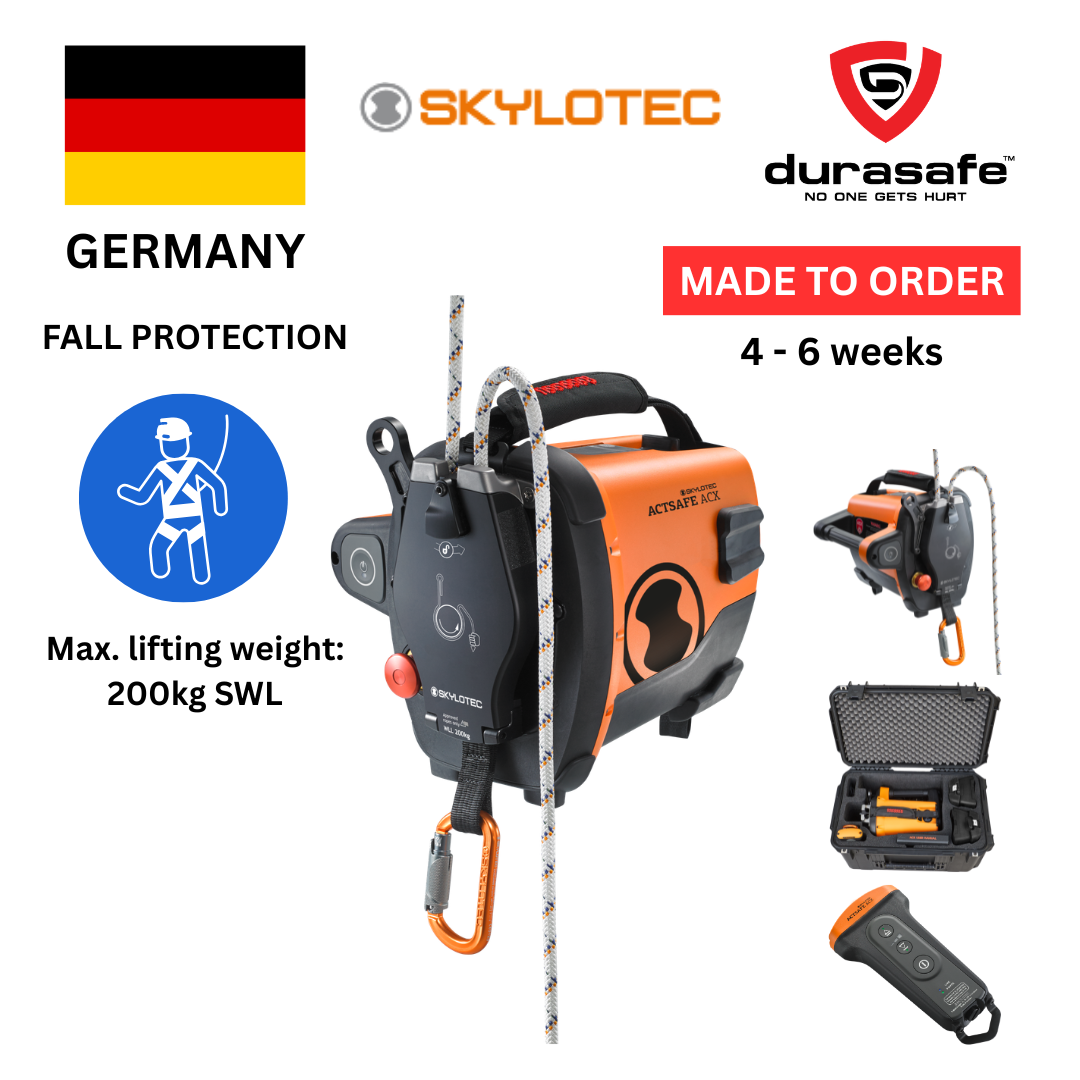

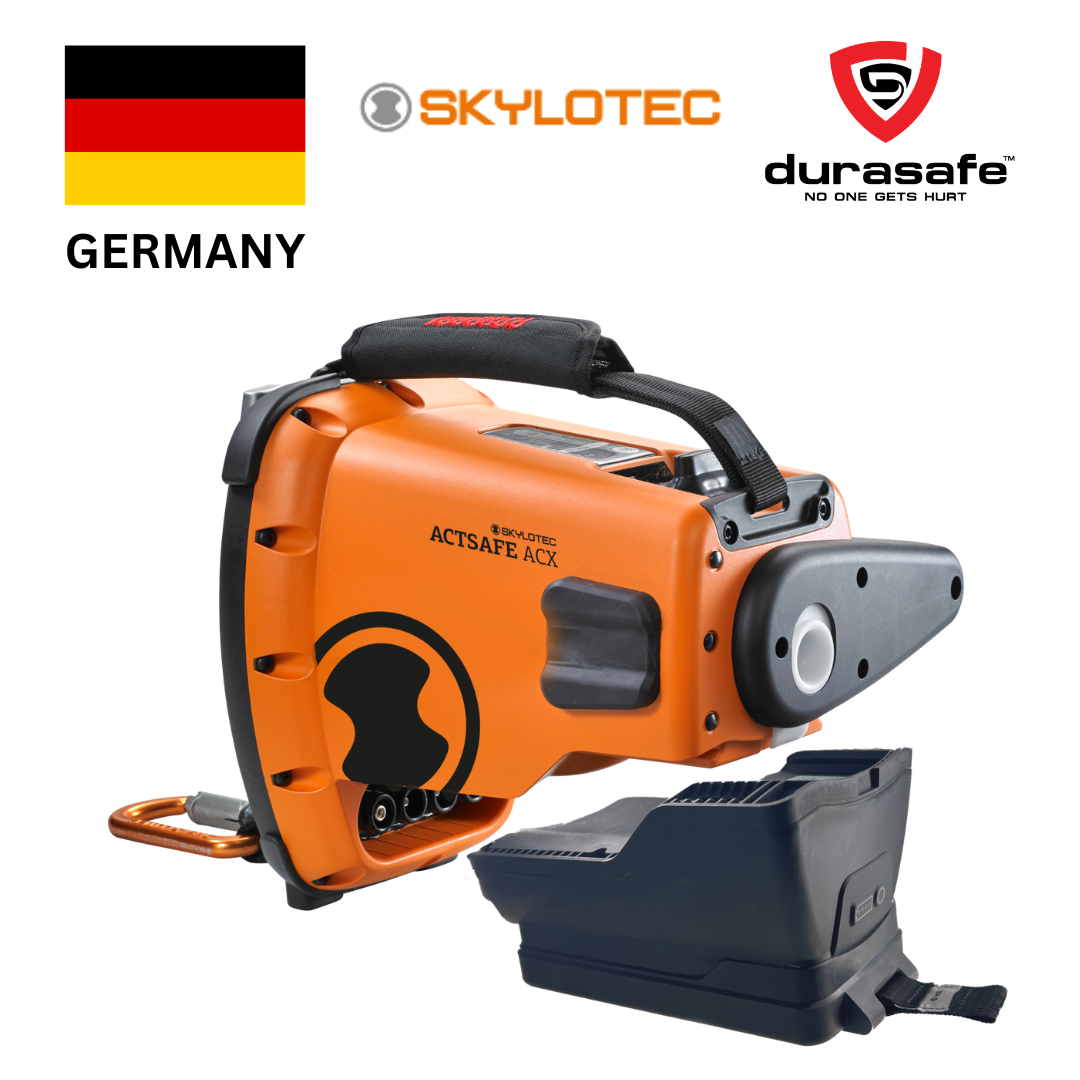

Set consisting of a battery-operated power ascender, two batteries and a charger

Efficient work at height: Simplified and accelerated work on structures that are difficult to access, such as facades, wind turbines and masts

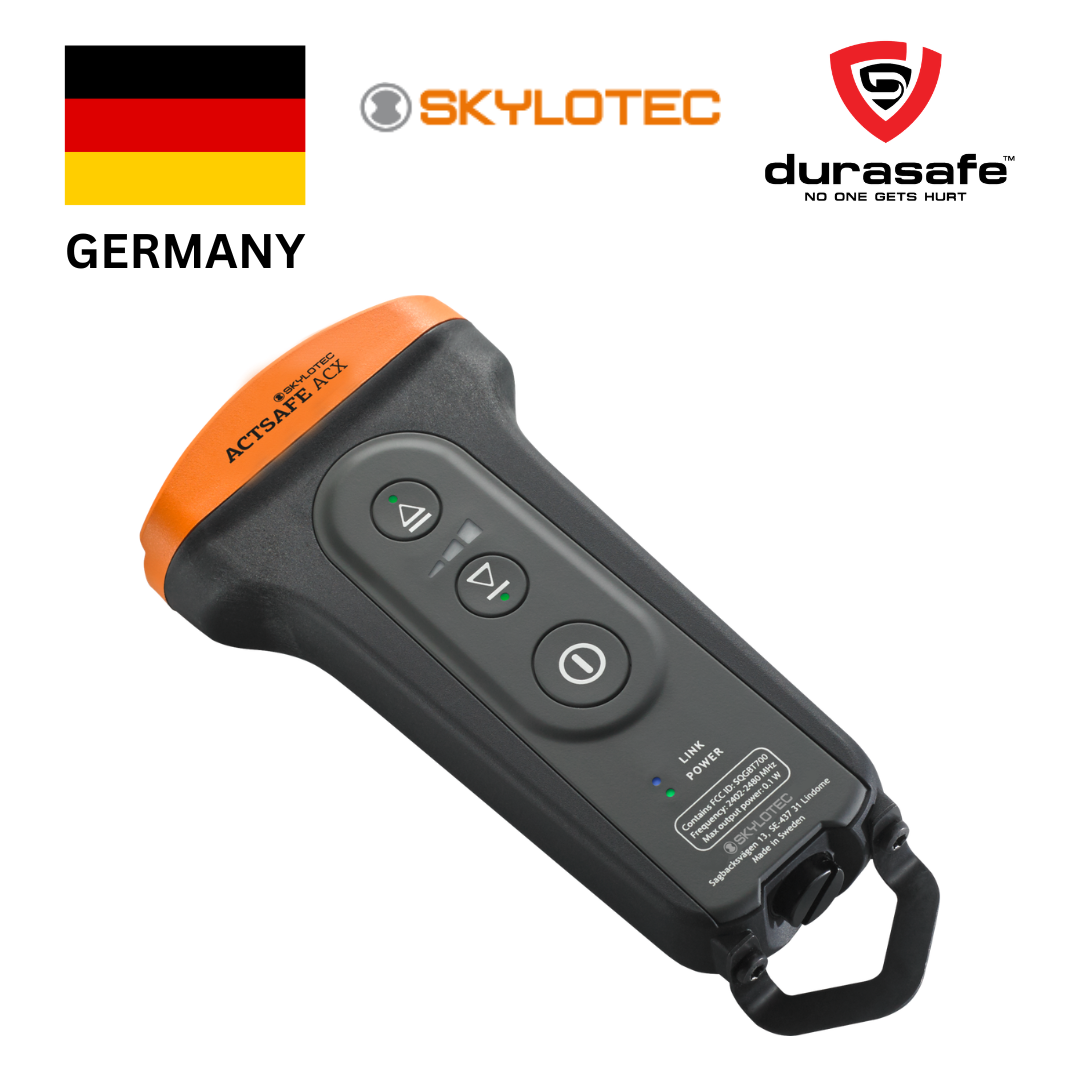

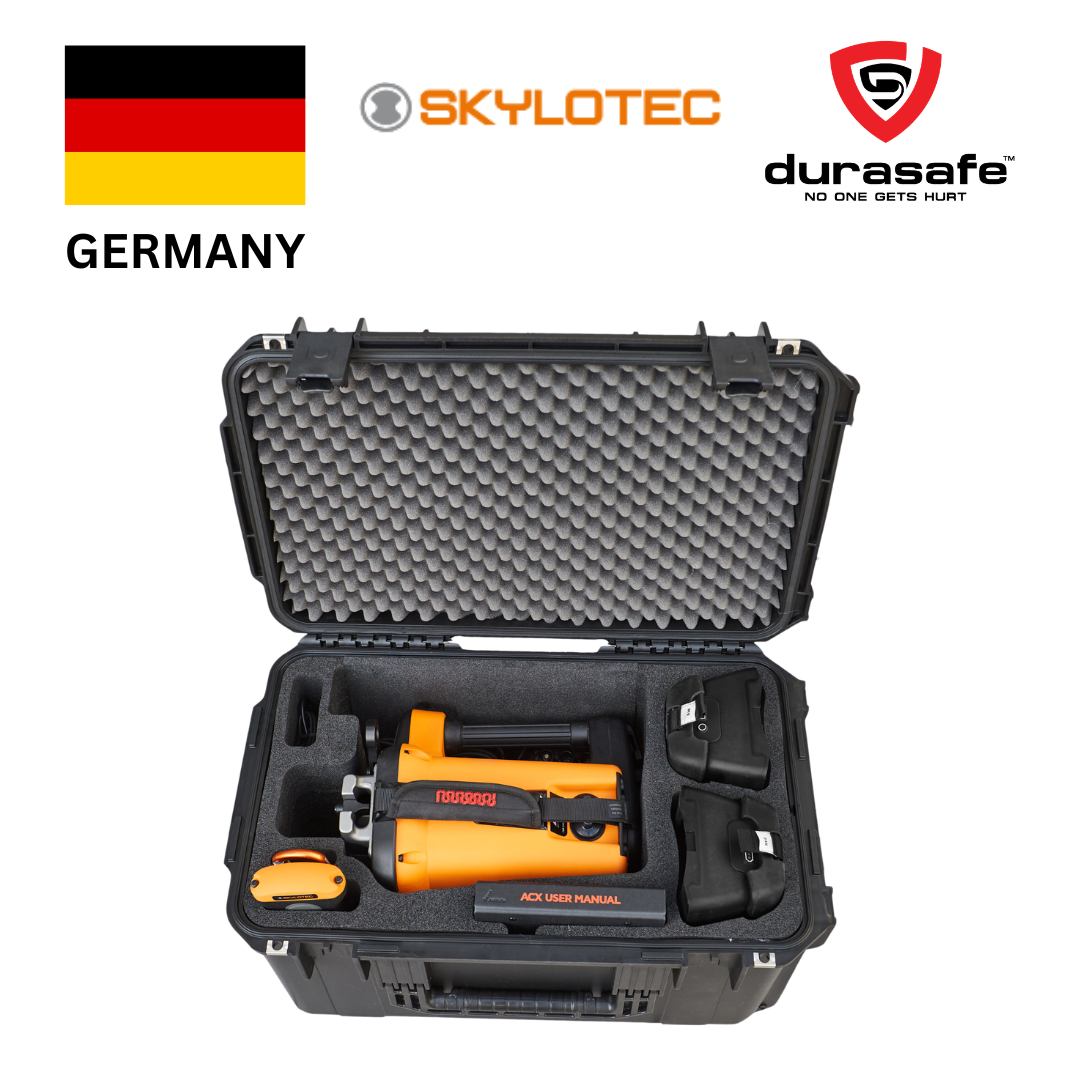

All-in-one set: includes two high-capacity batteries, a remote control and a charger
Extended performance: with a High Capacity Battery for increased range.

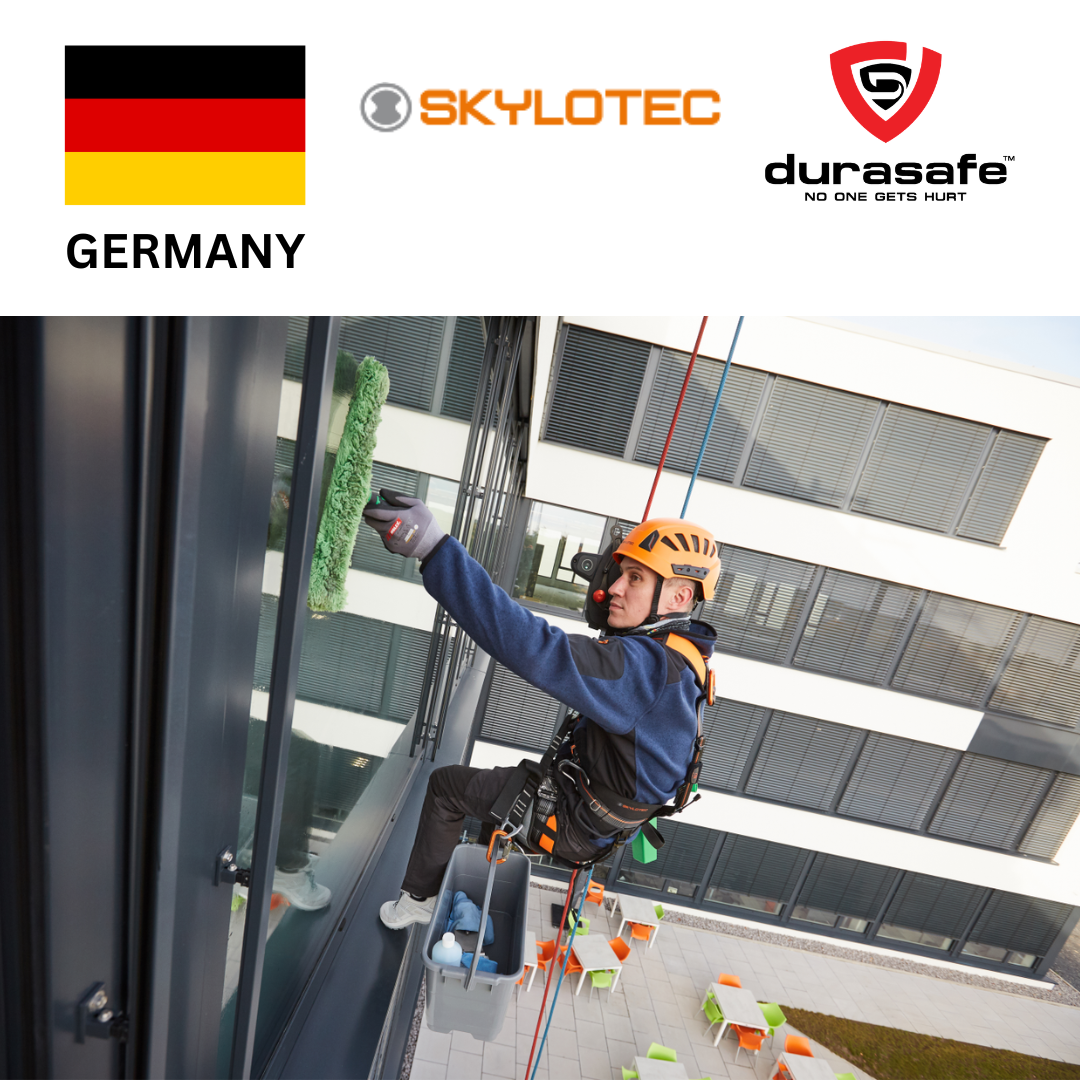

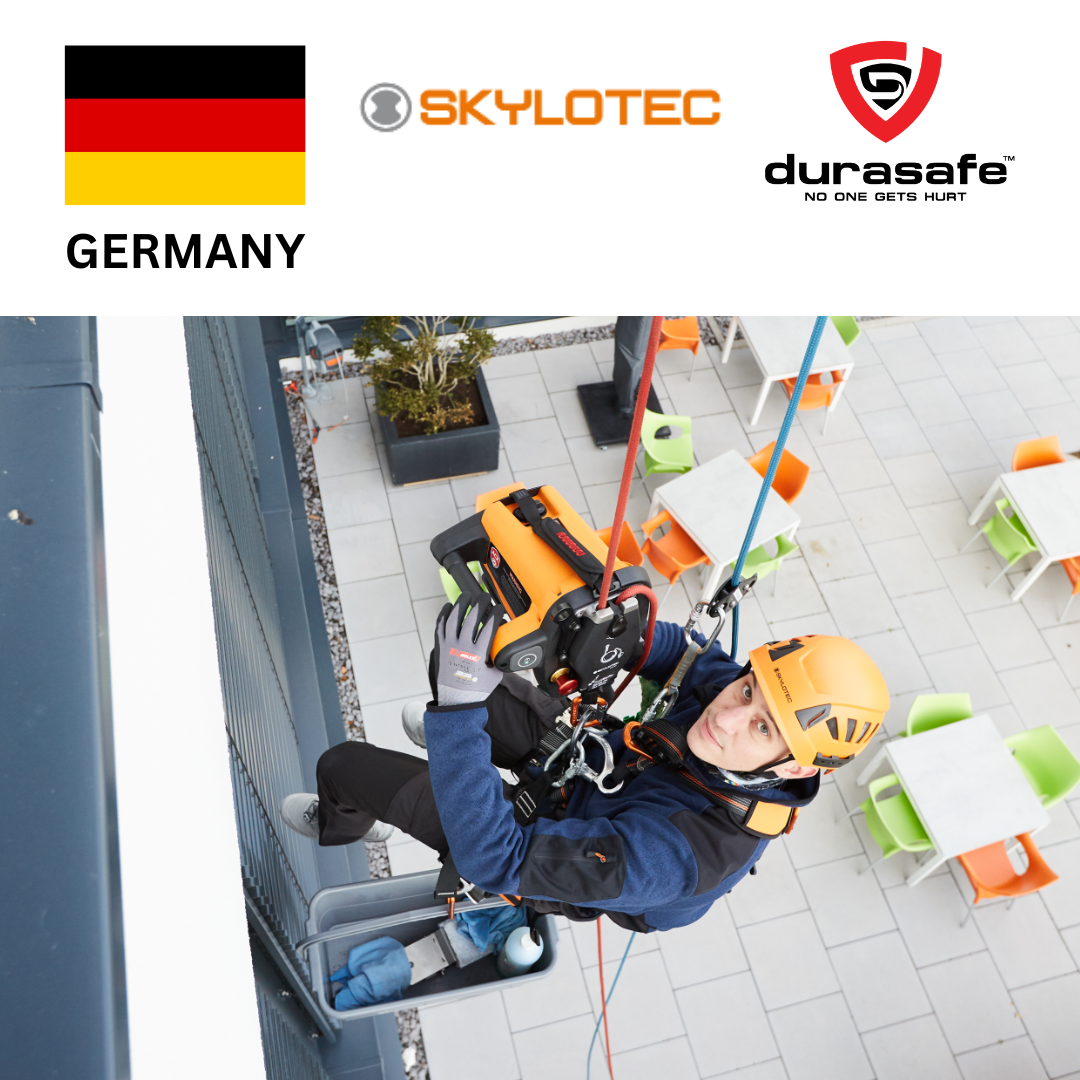

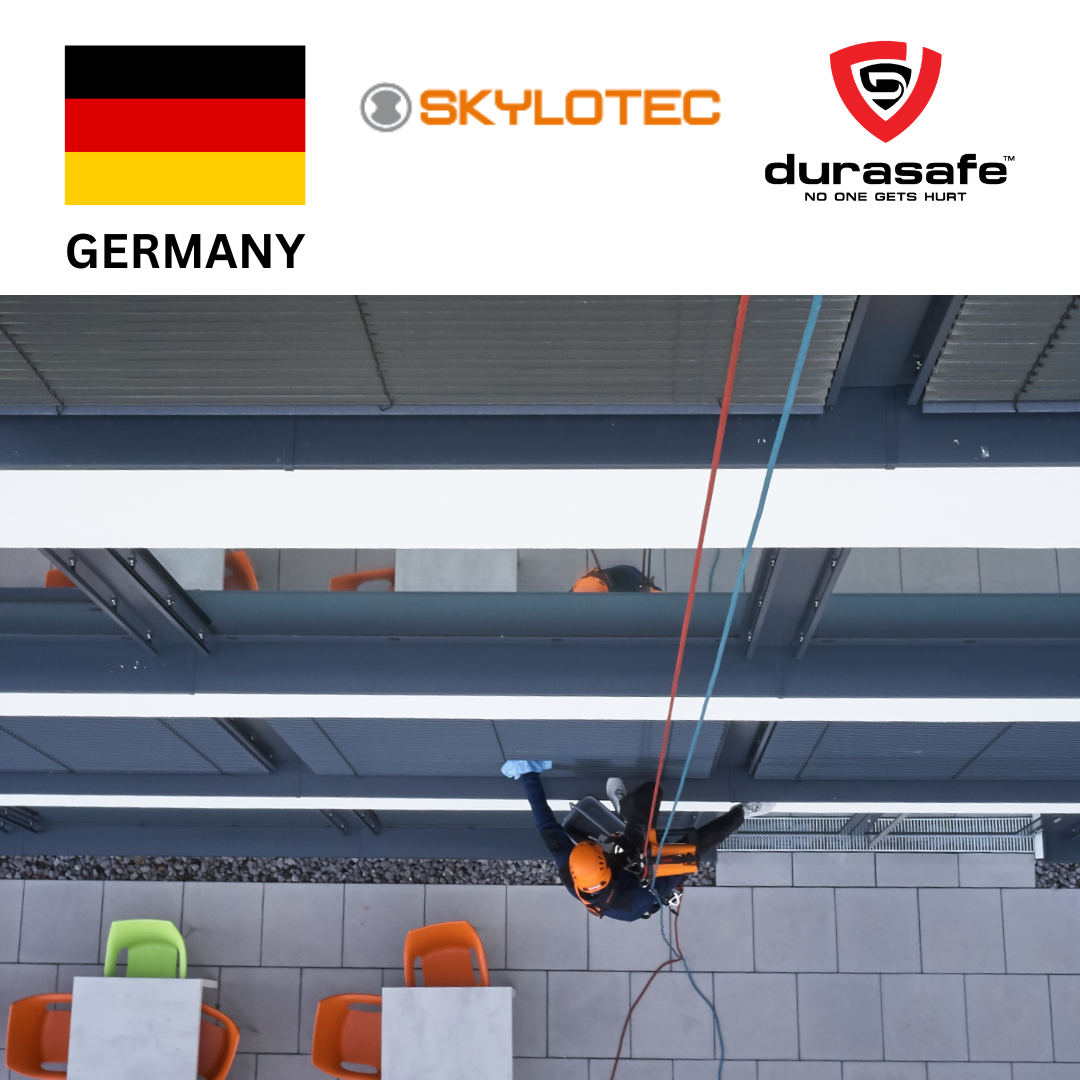

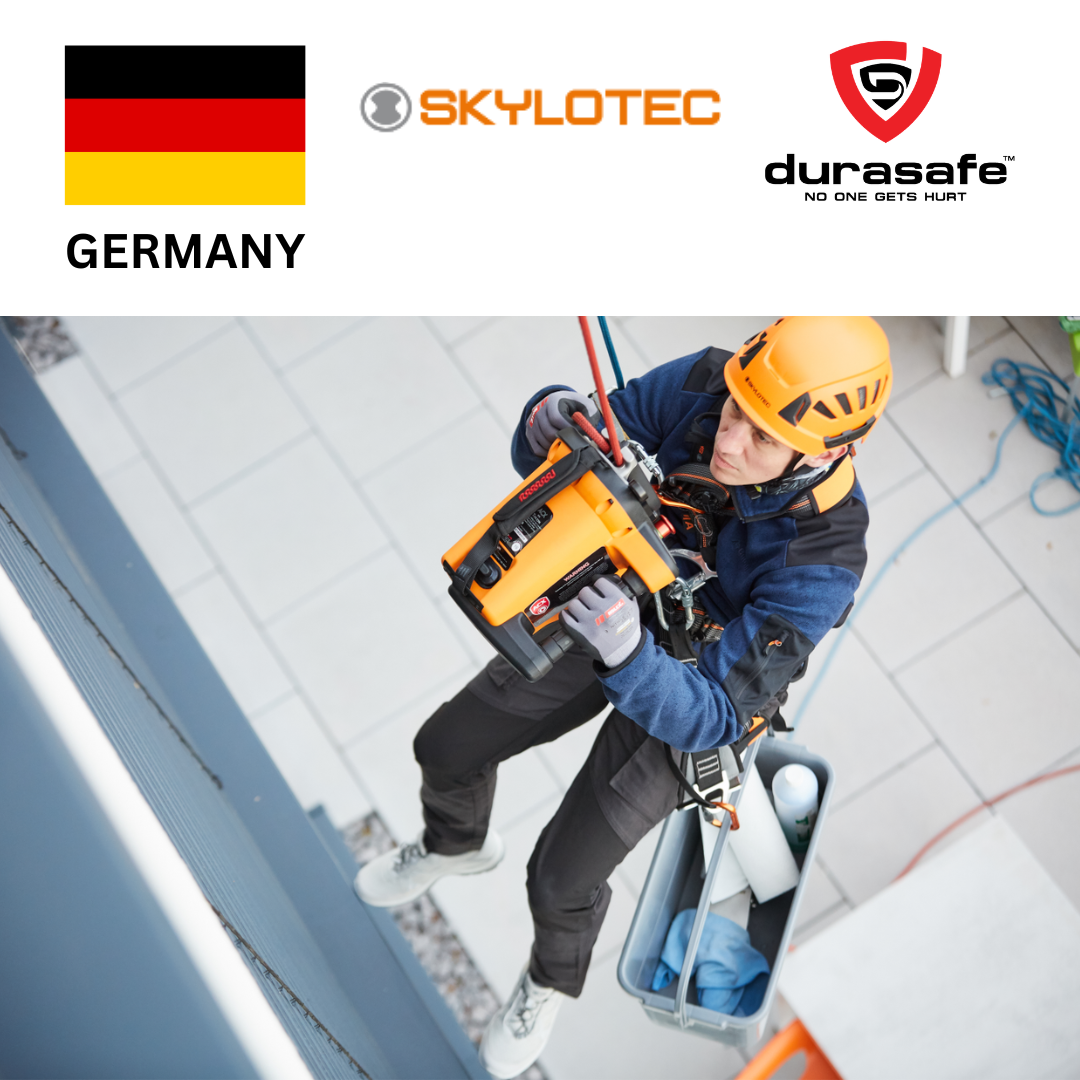

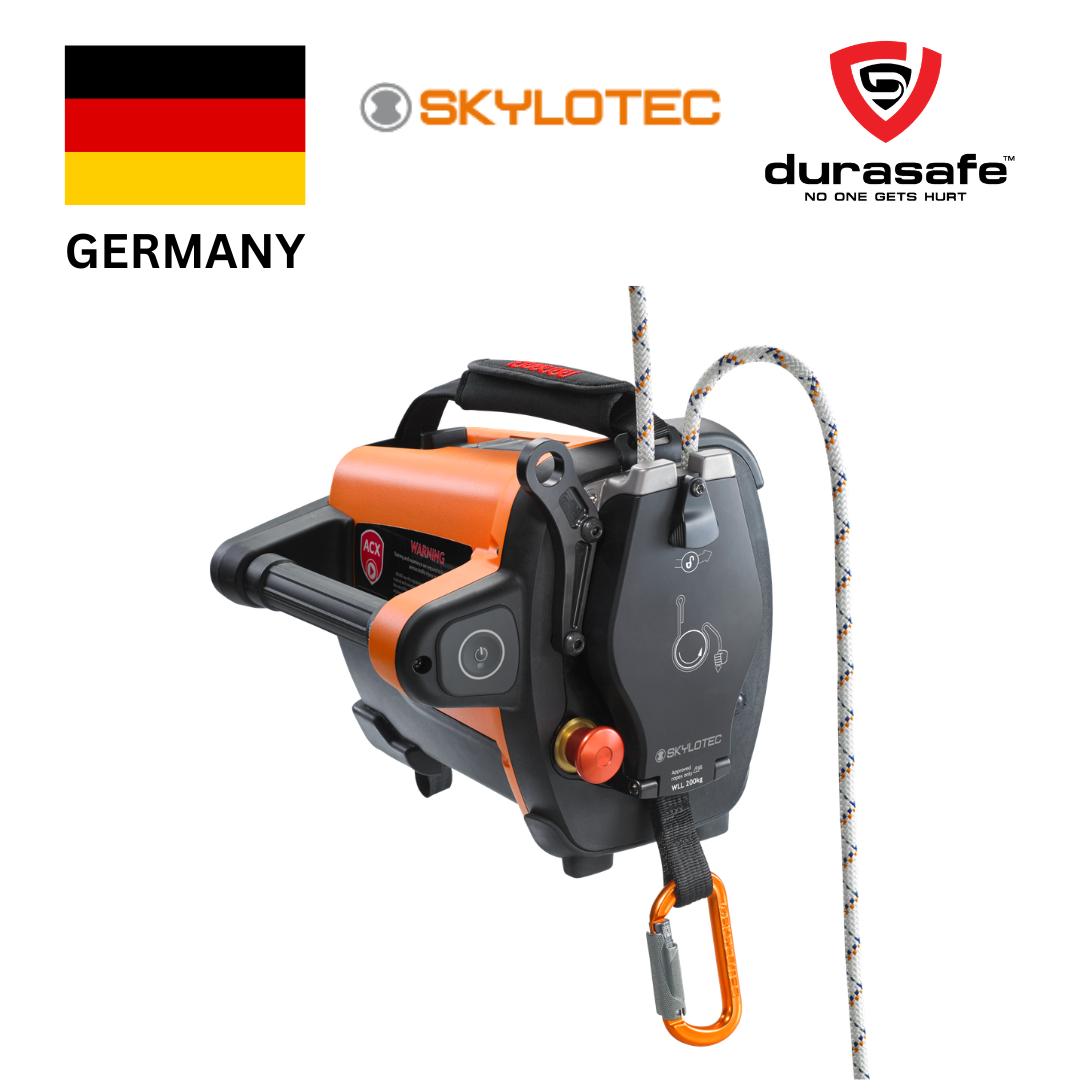

The ACX battery-powered hoist is a motorised system to ensure the transport of persons or loads to areas that are difficult to access and where occasional or recurring work is carried out. ACX is used, among other things, for cleaning facades or windows, for the maintenance of complex building structures, for the rotor blade maintenance of wind turbines or for transporting loads on masts. The ACX POWER ASCENDER considerably simplifies and accelerates work on complex structures and makes expensive access systems or lifting platforms superfluous. Countless rescue scenarios can also be carried out efficiently and with minimum effort with the ACX. ACX forms a highly flexible system for easy and cost-efficient cleaning or maintenance. In an emergency, the ACX can be controlled by remote control. The operation and use of the ACX can be learned in special training courses.

ADDITIONAL INFORMATION

Application areas Working in confined spaces, Working on masts and towers, Scaffolding, Rescue, Rope access, Various
Battery range at 20° C & 100 kg load 550 m
Charging time 90 minutes
Emergency descent function Yes
Emergency stop function Yes
Energy source Removeable Battery, POA-004 power supply
Remote control range 150 m
Underwater operations No
Usable in SEAL PAC No
Water dust resistance IP 55
Working Load Limit 220 kg
Min. temperature -10 °C
Max. temperature 40 °C
Minimum compatible rope diameter 11.00 mm
Maximum compatible rope diameter 11.00 mm
Minimum descent speed 1 m/min
Maximum descent speed 25 m/min
Min. ascent rate 1 m/min
Max. ascent rate 24 m/min
Min. noise level 0 dB(A)
Max. noise level 76 dB(A)
Material Steel, Aluminium, Nylon
Number of Rechargeable Batteries 2
Regional Charger CN
Customs tariff number 84253100
Product length 63.00 cm
Product width 37.00 cm
Product height 42.00 cm
Colour Orange
Net weight 28.00 kg
Gross weight 28.00 kg
